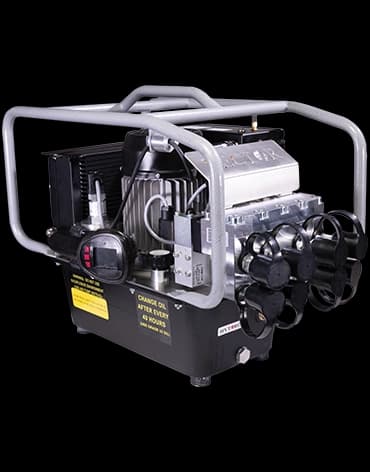

HY-TWIN 230

This high-powered, twin-motor, 3-stage pump provides twice the speed and oil flow of any other available system. Ideal for large hydraulic or multi-tool systems, the HY-Twin 230 delivers high power for large torque wrenches (10,000 ft.-lbs. and up) without compromising speed. The five-gallon reservoir provides enough oil to power up to four large tools at once, and the built-in casters allow for increased mobility.

Pump Features

Power 230v (30 Amp)
Data Recording NO
Gauge 0-10 k PSI (+/-1% Accuracy)
Reservoir Capacity 5 gals. / 19 l
Manifold 4 Ports
Stages 3
Max Oil Flow Rate 1,480 cu. in./min. (24 l/min.)
Weight 98 lbs
Protective Caging YES
Oil Cooler YES

Technical Data

Power
230v (30 Amp)
Data Recording
No
Gauge
0-10 k PSI (+/-1% Accuracy)
Reservoir Capacity
5 gals. / 19 l
Stages
3
Weight
112 lbs. / 51 kg
Maximum Oil Flow Rate
1,480 cu. in./min. (24 l/min.)
Oil Cooler
Yes
Protective Caging
Yes
15’ Remote Control
Yes
15’ Twin Line Steel Braided Hydraulic Hose
Yes

Documentation

ACCESSORIES

Backup Wrenches Interchangeable spanners from 1-7/16" to 3 1/8".
bolt tensioning methods
Reaction Fixtures Standard & customized solutions for every type of application.
Sockets High strength and impact resistant hex and Allen sockets.
Offset Link Offset links For limited clearance. Perfect for plate heat exchangers.
Frog Bolt Lock-nut effect reduces chance of loosening due to high vibration.

Time Savings

ANSI Flange time calculator and Multi-Bolt calculator.
Determine just how much efficiency gains you can make by using HYTORC Parallel Joint Closure.
